lightweight cofdm video trasmitter Mini size low delay small UAV video transmitter
Product description:

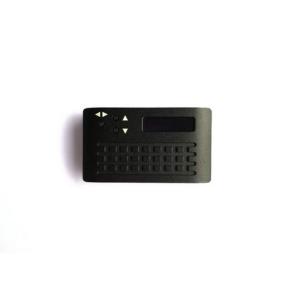

HN-510 Micro COFDM Transmitter: This product is our company's latest micro wireless video transmission equipment,using advanced video pre-processing technologies and efficient video coding algorithms, the device have refined on the improve of coding efficiency,reduced coding delay,algorithm optimization,anti-error rate and improve the quality of video, it can be used the lowest rate to achieve the best image compression.
Product features:
■ HDMI and CVBS dual video inputs
■ 1080p FHD up to 60fps
■ Transmission range up to 1-1.5km NLOS
■ Licensed and ISM frequencies (300MHz-2.7GHz)
■ 60-110ms low system latency
■ H.264/H.265 encoding
■ AES256 encryption
Technical parameters:
| Model | HN-510 |
| Voltage | DC12V |
| Power consumption | 5W |
| Video input | CVBS |
| output frequency |
300MHz/2500MHz (other frequency on request) |
| Bandwidth | 4MHZ/8MHz |
| output power | 20dBm/100mw |
| Modulation | COFDM |
| Modulation mode | QAM4,QAM16,QAM64 |
| RF interface | MMCX |
| FEC | 1/2,2/3,3/4,5/6,7/8 |
| Carries | 2K |
| Guard Interval | 1/32,1/16,1/8,1/4 |
| Video processing method | MPEG-2 |
| Parameter control mode | Through the control panel to set the relevant parameters(or external serial port) |
| Operating temperature | -20℃～75℃ |
| Dimensions | 60m*36mm*19mm |
| weight | 58g |
FAQ
What can you buy from us?
Wireless HD Video Transmitter,Codec Module,Antenna,Video/Data/Rc Transmission System,Long Range Video Transmission
Why should you buy from us not from other suppliers?
Our core R&D team comes from the first-class university in China, major in communication engineering.We believe that wireless
connection will keep on developing in professional markets in the future.
